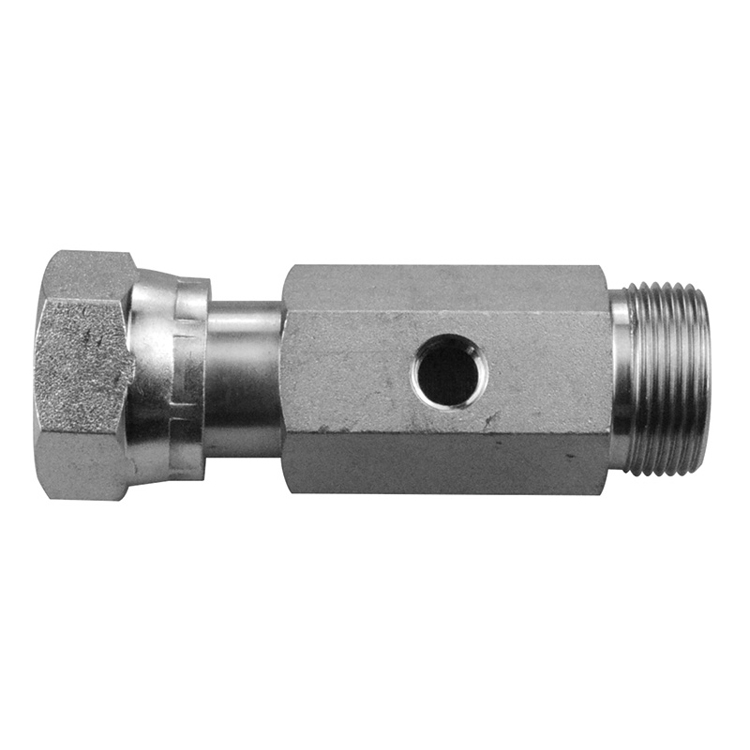

T8309308-12-12-04 1-3/16-12 O-RING FACE SEAL CONNECTOR C/W 1/4" FEMALE PIPE (NPT) PORT
SKU: :
T8309308-12-12-04Categories: :
Diagnostic Test Point Adapters
100% original guarantee
Return within 30days
Fast delivery
These zinc-plated carbon steel adapters are designed specifically for hydraulic diagnostic applications and feature different thread ports depending on your needs. Diagnostic test point adapters are used to retrofit test points on older systems, combine measuring points, or allow testing points to be added for new installations. Should you require a configuration not listed here, please contact us directly.Safety Note: Diagnostic test point adapters should be stocked in a completely separate location from regular adapters, since a test point adapter installed in the place of a normal adapter will prevent normal operation of the hydraulic system.
| WEIGHT | 0.36 lb |
| FEMALE O-RING FACE SEAL SIZE | -12 |
| FEMALE THREAD DIMENSIONS | 1-3/16-12 |
| FEMALE THREAD TYPE | Female O-Ring Face Seal |
| FITTING CATEGORY | Test Point Adapters |
| FITTING TYPE | O-Ring Face Seal Connector c/w Pipe Port |
| MALE O-RING FACE SEAL SIZE | -12 |
| MALE THREAD TYPE | 1-3/16-12 |
| MATERIAL1 | Male O-Ring Face Seal |
| MATERIAL | Zinc-Plated Carbon Steel |
| PORT SIZE | 1/4-18 Female Pipe (NPT) |
| SHAPE | Straight |
