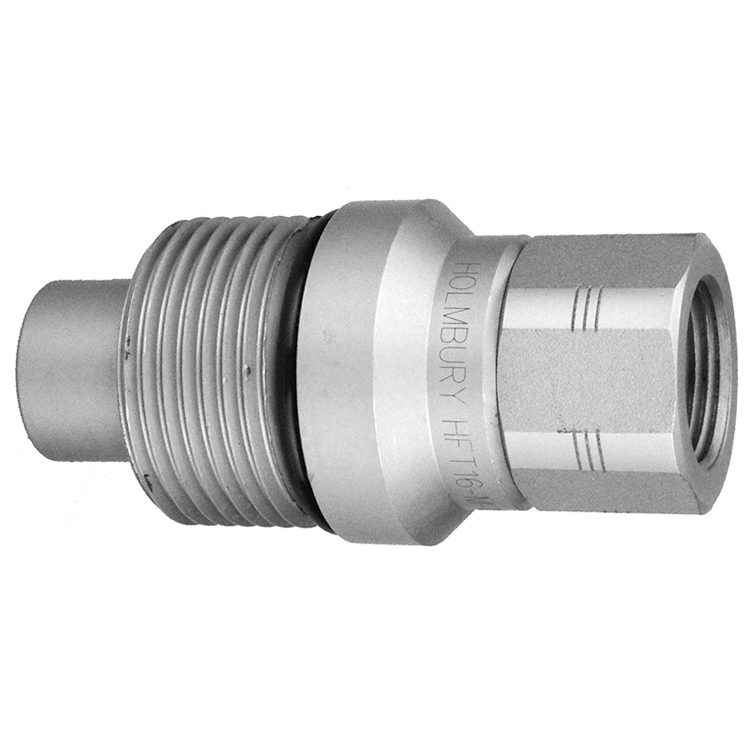

C702VEP-08-08 1/2" C700VEP SERIES THREAD TOGETHER FLUSH-FACE HYDRAULIC NIPPLE WITH FEMALE PIPE (NPTF) THREAD
SKU: :
C702VEP-08-08Categories: :
C700VEP Series Thread Together Hydraulic Couplings
100% original guarantee
Return within 30days
Fast delivery
VEP series couplings are flush face but they also thread together. This feature eliminates premature wear from brinelling of the locking balls in high impulse situations. In addition, the patented internal valve allows connection and disconnection with high residual pressures (up to 3600 psi). The flush face design is easy to clean and also avoids loss of hydraulic fluid during connection and disconnection. C700VEP Couplings come standard with buna-N (Nitrile) seals, allow for bidirectional flow, and can be found on hydraulic attachments in construction, mining, and agricultural industries.
| WEIGHT | 1.40 lb |
| BODY SIZE | 1/2" |
| APPLICATION | Agriculture Construction Demolition |
| FEMALE PIPE SIZE | 1/2" |
| FITTING CATEGORY | C700VEP Series Thread Together Hydraulic Couplings |
| FITTING TYPE | C700VEP Series Nipple |
| MATERIAL | Zinc-Nickel Plated Carbon Steel |
| THREAD DIMENSIONS | 1/2-14 |
| THREAD TYPE | Female Pipe NPTF |
| WORKING PRESSURE | 7975 psi |
