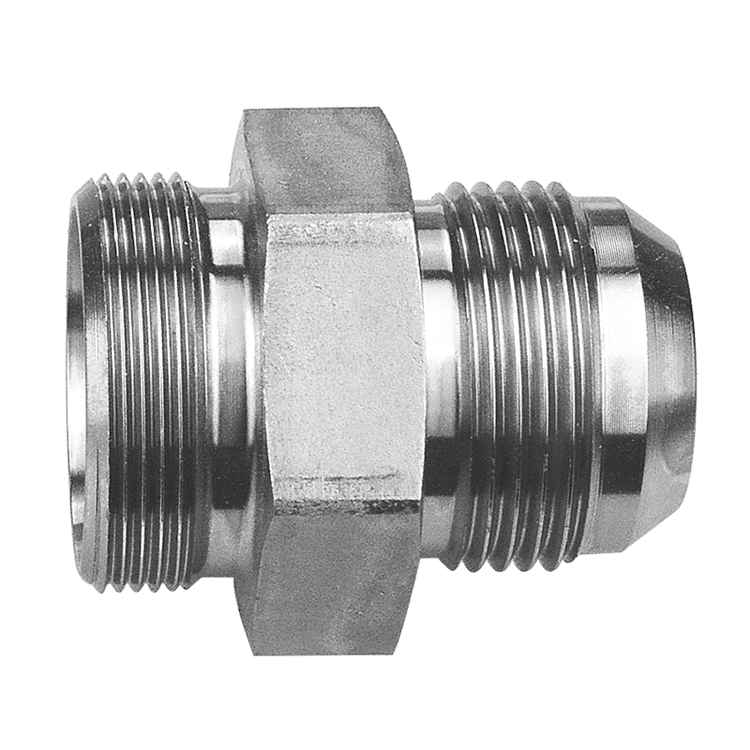

77015-28-16 M36 X 1.5 MALE KOBELCO TO 1-5/16-12 MALE JIC 37° FLARE CONNECTOR
SKU: :
77015-28-16Categories: :
Kobelco Adapters
100% original guarantee
Return within 30days
Fast delivery
Kobelco threads are very similar to metric threads and feature a 1.5 mm pitch. Sealing takes place between the 24° chamfer seat in the male connector and the respective sealing area on the female ball or cone. Please note, our Pulsar adapters are for general hydraulic use. Pressure ratings are dependent on size and thread design. Whenever possible, elbows and tees are forged one-piece designs rather than braised from components. However, where manufacturing quantities are insufficient to warrant forging, parts are braised.
| WEIGHT | 0.33 lb |
| FITTING CATEGORY | Kobelco Thread Adapters |
| FITTING TYPE | Kobelco JIC Connector |
| MALE JIC 37° SIZE | -16 |
| MALE THREAD TYPE | Male Kobelco |
| MATERIAL | Zinc-Plated Carbon Steel |
| SECONDARY MALE THREAD DIMENSIONS | 1-5/16-12 |
| SECONDARY MALE THREAD TYPE | Male JIC 37° Flare |
| SHAPE | Straight |
| MALE KOBELCO SIZE | -28 |
| MALE THREAD DIMENSIONS | M36 x 1.5 |
