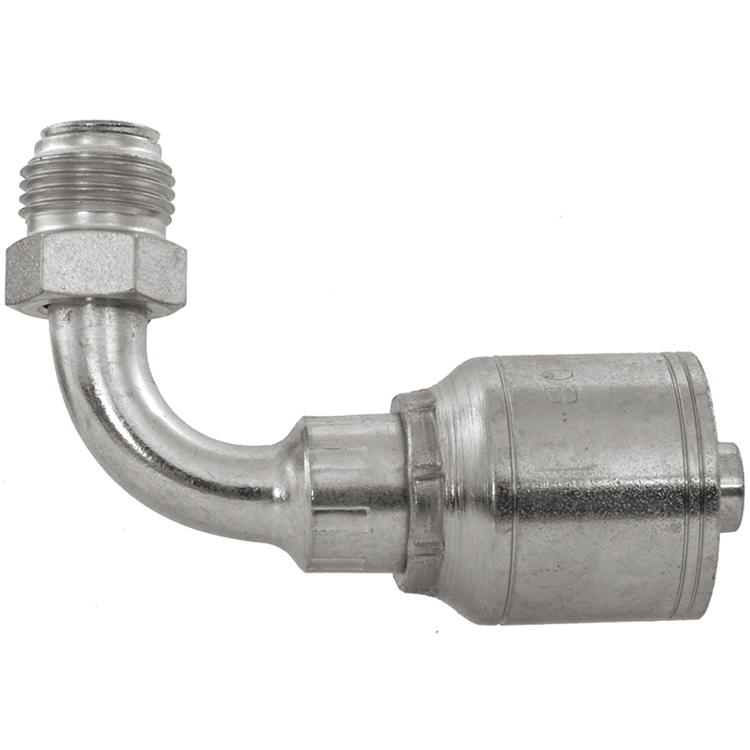

4292-04-06 3/8" 90° NON-SKIVE CRIMP COUPLING ELBOW WITH 7/16-24 MALE INVERTED FLARE THREAD
SKU: :
4292-04-06Categories: :
Crimp Coupling Non-Skive
100% original guarantee
Return within 30days
Fast delivery
One Piece Non-Skive Crimp Couplings are engineered to ensuring hose assemblies meet or exceeds the highest global standards. The 4200 Series Crimp Couplings best suited for single wire and double wire braided hoses from 1/4" to 1" while the 4400 Series Crimp Couplings are for four spiral hoses from 3/8" to 2" or single and double wire braid hoses from 1-1/4" to 2". These fittings are engineered for superior performance and durability. They are precision-machined from high-quality bar stock, then carefully bent and heat-treated to maximize strength and reliability. Compared to fittings that are conventional brazed these fittings providing enhanced durability for demanding applications.
Always refer to the latest crimp charts for correct selection of ferrules and crimp specifications for your hose assembly, guaranteeing optimal performance safety.
| WEIGHT | 0.14 lb |
| FITTING CATEGORY | 4200 Series Crimp Couplings |
| FITTING TYPE | One-Piece Non-Skive Crimp Coupling |
| MATERIAL | Zinc-Plated Carbon Steel |
| SHAPE | 90° Elbow |
| THREAD DIMENSIONS | 7/16-24 |
| THREAD TYPE | Male Inverted Flare |
| COUPLING SERIES | 4200 Series |
| DROP LENGTH | 1.26" |
| HOSE SIZE | 3/8" |
| INVERTED FLARE SIZE | -04 |
