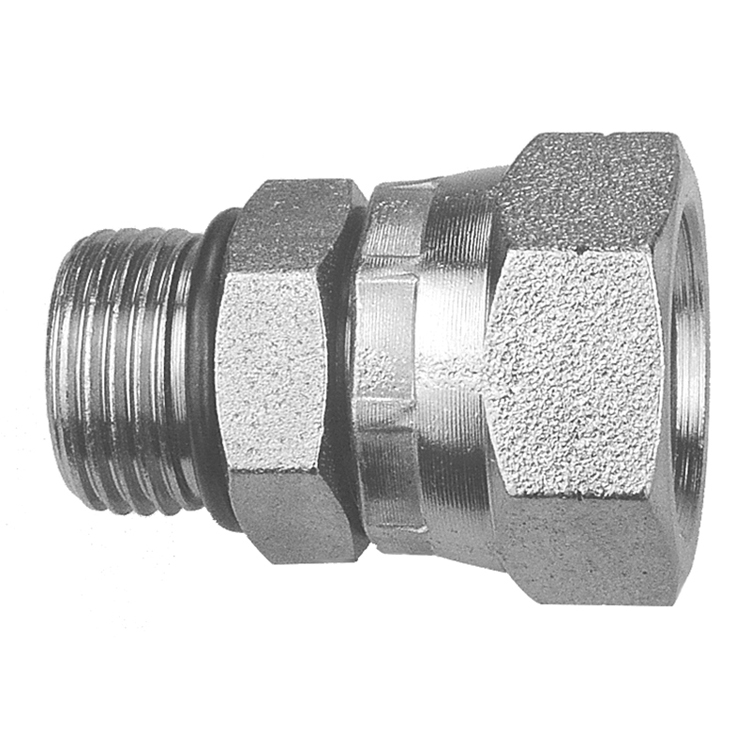

26011-08-08 3/4-16 MALE O-RING BOSS TO 1/2" FEMALE BSP PARALLEL CONNECTOR
SKU: :
26011-08-08Categories: :
O-Ring Boss Adapters
100% original guarantee
Return within 30days
Fast delivery
BSP threads seal in the same way as NPT threads but are different dimensions. BSP is very common on many types of European equipment as well as some Japanese machinery. BSP threads may be tapered (bBSPT), but more often are parallel threads (bBSPP), with females relying on a cone seat for sealing. Male parallel threads seal with a chamfered end on a female with a cone seat, with a copper gasket on a flat seat, with an O-ring in a recessed port, or finally, with a bonded seal in a machined face port. Please note, our Pulsar adapters are for general hydraulic use. Pressure ratings are dependent on size and thread design. Whenever possible, elbows and tees are forged one-piece designs rather than braised from components. However, where manufacturing quantities are insufficient to warrant forging, parts are braised.
| WEIGHT | 0.21 lb |
| FEMALE BSPP SIZE | 1/2" |
| FEMALE THREAD DIMENSIONS | 1/2-14 |
| FEMALE THREAD TYPE | Female BSP Parallel |
| FITTING CATEGORY | BSP Parallel Pipe Adapters |
| FITTING TYPE | BSPP ORB Connector |
| MALE O-RING BOSS SIZE | q-08 |
| MALE THREAD TYPE | Male O-Ring Boss |
| MATERIAL | Zinc-Plated Carbon Steel |
| SHAPE | Straight |
| MALE THREAD DIMENSIONS | 3/4-16 |
