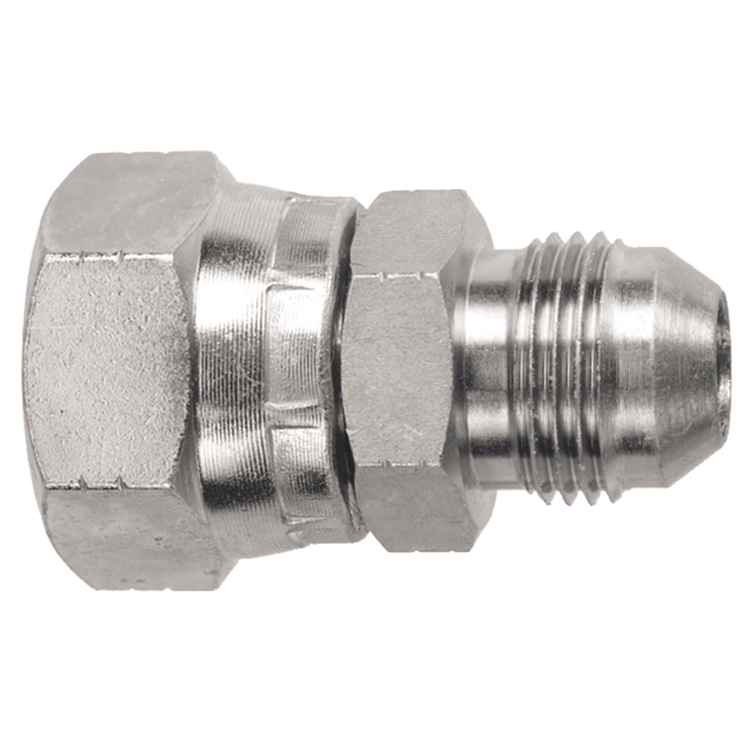

15083-20-20 1-11/16-12 FEMALE O-RING FACE SEAL TO 1-5/8-12 MALE JIC 37° FLARE CONNECTOR
SKU: :
15083-20-20Categories: :
JIC 37° Flare Adapters
100% original guarantee
Return within 30days
Fast delivery
The O-Ring Face Seal connection is a recent coupling innovation designed to minimize leakage, especially in high pressure applications. The o-ring fits in a recessed groove on the face of the straight male thread and seals when compressed onto the flat face of the female as the threads are tightened. Please note, our Pulsar adapters are for general hydraulic use. Pressure ratings are dependent on size and thread design. Whenever possible, elbows and tees are forged one-piece designs rather than braised from components. However, where manufacturing quantities are insufficient to warrant forging, parts are braised.
| WEIGHT | 0.54 lb |
| FEMALE O-RING FACE SEAL SIZE | -20 |
| FEMALE THREAD DIMENSIONS | 1-11/16-12 |
| FEMALE THREAD TYPE | Female O-Ring Face Seal |
| FITTING CATEGORY | O-Ring Face Seal Adapters |
| FITTING TYPE | O-Ring Face Seal JIC Connector |
| MALE JIC 37° SIZE | -20 |
| MALE THREAD TYPE | Male JIC 37° Flare |
| MATERIAL | Zinc-Plated Carbon Steel |
| SHAPE | Straight |
| MALE THREAD DIMENSIONS | 1-5/8-12 |
