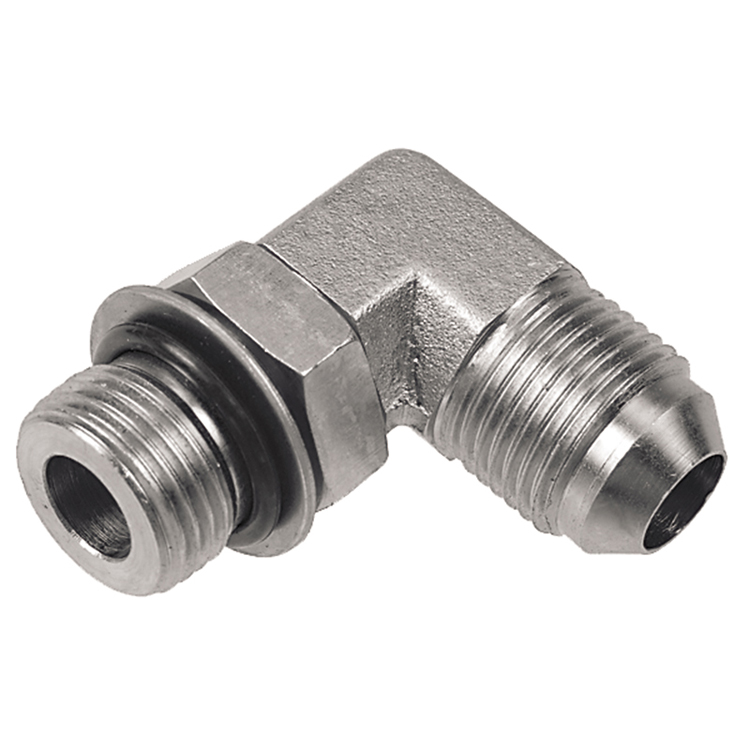

1195SS-08-08 3/4-16 TYPE 316 STAINLESS STEEL MALE O-RING BOSS TO 3/4-16 MALE JIC 37° FLARE 90° ELBOW
SKU: :
1195SS-08-08Categories: :
O-Ring Boss Adapters
100% original guarantee
Return within 30days
Fast delivery
O-Ring Boss and JIC 37° fittings use the same thread sizes, but the ORB seal occurs on the rubber o-ring of the male ORB connector. The ORB straight thread female port has a machined seat where the o-ring fits and seats when the threads are tightened. Please note, our Pulsar adapters are for general hydraulic use. Pressure ratings are dependent on size and thread design. Whenever possible, elbows and tees are forged one-piece designs rather than braised from components. However, where manufacturing quantities are insufficient to warrant forging, parts are braised.
| WEIGHT | 0.25 lb |
| FITTING CATEGORY | O-Ring Boss Adapters |
| FITTING TYPE | O-Ring Boss JIC Elbow |
| MALE JIC 37° SIZE | -08 |
| MALE O-RING BOSS SIZE | q-08 |
| MALE THREAD TYPE | Male O-Ring Boss |
| MATERIAL | Type 316 Stainless Steel |
| SECONDARY MALE THREAD DIMENSIONS | 3/4-16 |
| SECONDARY MALE THREAD TYPE | Male JIC 37° Flare |
| SHAPE | 90° Elbow |
| MALE THREAD DIMENSIONS | 3/4-16 |
